Offered in 3 types,
our manual collet chucks are designed to be used as
stand alone, in multiples, or for use on an indexer
or rotary table. The ACSU series features
"Dead
Length" holding
(with zero part movement) and no "pull
back" so that linear tolerances are maintained.
Operation:
Cam rotates at 90 degree turn, using provided
wrench, which lifts collet sleeve closing collet.
Mounting:

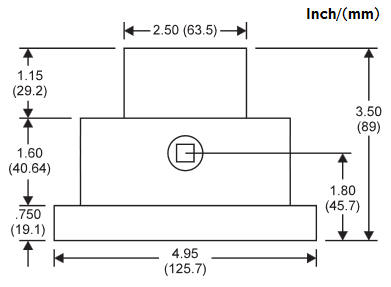

6 mounting holes are
positioned for easy mounting. (5/16" on a 4.12" bolt
circle)
Bolt
Hole Spacing:
{4}
at 90 degrees (45 degrees off cam) or {3}
at 120 degrees (60 degree off cam.)
