Eaglerock Technologies

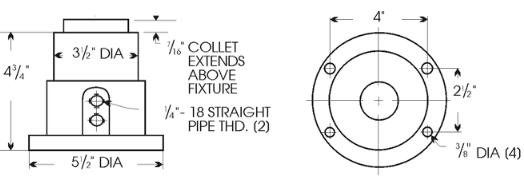

Part Number  A1-212-5CS

5C Air collet Fixture

For use with Hardinge 2" 5c step collets with 1 1/4 depth
Designed especially fr high production application.  Their light weight and compact size permits the use of several units on indexing tables for custom applications or used individually for fast chucking of parts on milling machines and drill presses.

By using the Hardinge 2" 5c step collets with 1 1/4" depth, superior performance is insured due to the collet taper being on the "head" of the collet.  This exclusive feature of the Hardinge step collet allows for maximum tigidity and repeatability of the workpiece.

Air operation is double acting for "power" opening and closing of the collet.  The collet is locked in to position for positive depth location of work.  These units operate efficiently and effectively on air pressure up to 150 PSI with upward clamping pressure exceeding 7.5 times line pressure.  All bearings and moving parts are hardened and precision grouind for accuracy and long life

  Collet Capacity Depth Cat. No.
Air
Collet Fixture
Hardinge 5c
step collet
2" 1 1/4" A1 212-5CS
