Atlas Workholding JASR Stationary
Dead Length Collet Chuck

For Pallets, Tombstones, Machining Centers,
 Standard Mills and Drill Presses

*   Powered by air pressure
*  Small foot print
*  Low cost
*  Easy to install
*  5C, 16C, B42, B60, and B80 models available
*  Repeatability .0006"
*  Dead Length design
*  Lever or foot pedal actuated
*  Low Maintenance with oil mist lubrication system
*  High resistance to coolant and chip penetration
*  Low Maintenance, long life

Order
Number
JASR-5C jASR-16C JASR-B42 JASR-B60 JASR-B80

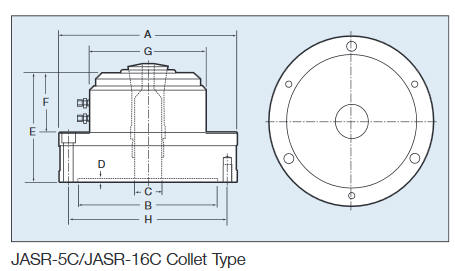

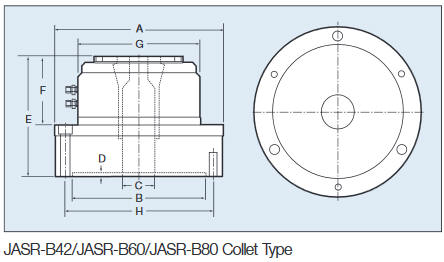

A 6.61 7.76 7.72 8.15 9.67
B 5.12 6.30 6.10 6.69 7.87
C 1.02 1.57 1.65 2.36 3.15
D .020 .200 .200 .200 .200
E 3.94 3.94 4.41 5.43 5.83
F 2.17 2.52 3.03 3.39 3.15
G 4.33 5.12 5.67 6.61 7.72
7.72H 5.79 6.93 6.77 7.32 8.90
Mounting Screw 9.0x4 11.0x3+M10xP1.5x3 11.0x3+M10xP1.5x3 11.0x3+M10xP1.5x3 11.0x6 for M10
Air/Hyd Actuated Air Air Air Air Air
Working Collet 5C 16C B42 B60 B80
Operating Pressure 43-114psi 43-114psi 43-114psi 43-114psi 43-114psi
Chuck Thru-Hole 1.02" 1.57" 1.65" 2.36" 3.15"
Clamping Force 10,615lbf@100psi 12,320 lbf@100psi 13,112@100psi 15,502@100psi 19,935@100psi
Net Weight 22 lbs. 31 lbs. 37 lbs. 71 lbs. 71 lbs.

Options:
        LEV100 - LEVER CONTROL PACKAGE:  (INCLUDES: LEVER CONTROL LINE FILTER, LUBRICATOR AND REGULATOR

        FOT200 - FOOT PEDAL CONTROL PACKAGE: (INCLUDES:  FOOT PEDAL, LINE FILTER, LUBRICATOR AND REGULATOR)
