COLLET FIXTURE - MUTIPLE COLLET -  YUASA

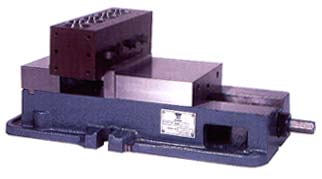

  The 640-404 Multi Collet Chuck Block was designed to be used either with a rotary indexer or as a stand alone collet fixture, mounted in a milling vise or similar type fixture. Four, manually operated "dead-lenght" 5C collet chucks are incorporated into the block. A simple 90 turn of each operating cam collapsing the collet sleeve, will activate the collet mechanism, with zero part movement when clamped. Each collet block comes complete with a flange plate for rotary table use.

5C MULTI COLLET CHUCK BLOCK



  TECHNICAL DATA:
  Repeatability: 0.0002" (0.005mm)

Block material: Mehanite cast iron

Squareness: 0.0004" (0.01mm)

Parallelism: 0.0003" (0.007mm)

Flatness: 0.0004" (0.01mm)

Gripping force: 400 lbs. (181 kg)
