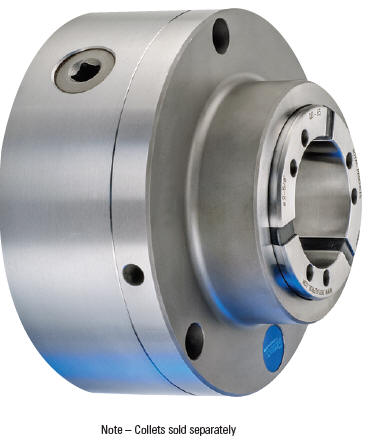

Royal 5c, 16C, 3J, Manual Collet Fixtures (Dead Length)


*  Opened and closed via an internal cam mechanism
*  Accu-Length operation - collet and workpiece position remains fixed for precise length control
*  Can be used in both stationary and rorary table applications.  (Not for use on lathes or grinders above 5 rpm!)
*  Special model 62004 bolts directly to Haas HRT-110* and other small indexers

*  All other models configured for both four and six slot mounting - 4.125" bolt circle diameter

*  All models include cam wernch



Model Capacity
(inch)
Type A B C D E F Part
Number
5C 1.062 1 3.37 2.50 4.95 3.50 1.15 .75 62002
5C 1.062 2 4.20 2.50 - 3.50 1.15 - 62004
16C 1.625 2 4.95 3.35 - 4.63 1.50 - 62006
3J 1.750 2 4.95 3.35 - 4.13 1.00 - 62008

*Haas and HRT-110 are trgistered trademarks of Haas Automation, inc.
