Lexair Direct Mount Collet Chuck


The Lexair Direct Mount Collet Chucks offer a simple and economical way of holding material for turning when using "C" or "J" style collets.



Our small body helps to increase tool clearance and lower the weight of rotating mass. This feature both relieves stress on the spindle bearings and lowers the time needed for acceleration or deceleration which means more time for production of parts. The rigid 360 clamping action allows for increases in spindle RPM's. These units are an excellent choice for clamping small diameter parts, for bar feed applications, and for heavy "roughing" and drilling operations. The "5C" chucks feature a standard threaded nose providing step chuck capability. Installation is effortless and employs the machine's standard drawtube plus one of our unique adapter nuts. These nuts are custom designed for your application via information supplied on a datasheet which must be filled out prior to ordering.

Model Number Spindle Nose Collet Type Capacity Maximium RPM
71702 A2-5 5C 1.062 6,000
71670 A2-6 5C 1.062 6,000
73026 A2-8 5C 1.062 4,500
72152 A2-5 16C 1.625 6,000
72150 A2-6 16C 1.625 6,000
73028 A2-8 16C 1.625 4,500
72100 A2-5 3J 1.750 6,000
71703 A2-6 3J 1.750 6,000
73027 A2-8 3J 1.750 4,500
All units of measure are inches.

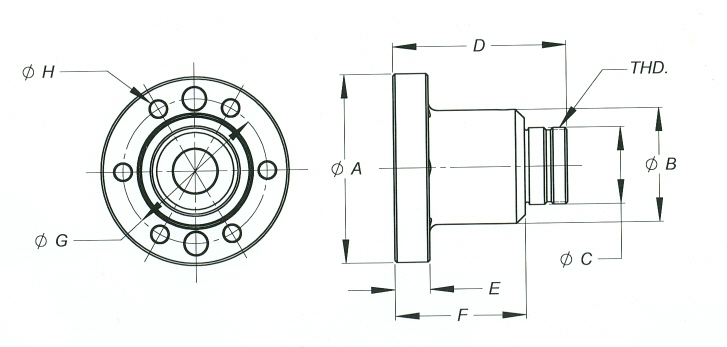

Model Number Spindle A B C D E F G H THD
71702 5C-A2-5 5.375 3.250 2.188 4.959 1.00 3.741 4.125 0.469 2 3/16"-10
71670 5C-A2-6 6.375 4.125 2.188 4.959 1.00 2.78 5.25 0.531 2 3/16"-10
73026 5C-A2-8 8.125 5.500 2.188 5.168 1.718 3.018 6.750 0.656 2 3/16"-10
72152 16C-A2-5 5.210 3.312 N/A 6.212 1.500 N/A 4.125 0.469 N/A
72150 16C-A2-6 6.375 4.250 N/A 5.712 1.312 N/A 5.250 0.531 N/A
73028 16C-A2-8 8.125 5.250 4.250 6.712 1.732 4.462 6.750 0.656 N/A
72100 3J-A2-5 5.250 3.344 N/A 5.818 1.318 N/A 4.125 0.469 N/A
71703 3J-A2-6 6.375 4.250 N/A 5.818 1.148 N/A 5.250 0.531 N/A
73027 3J-A2-8 8.125 4.500 N/A 6.100 1.470 N/A 6.750 0.656 N/A
All units of measure are inches.
