Atlas 5C & 16C

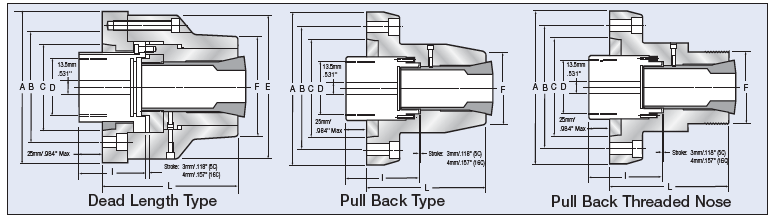

Dead-Length and Pull Back Power Chucks
A Type Mount
• Short overall length excellent for main or sub-spindle
applications
• Chuck accuracy is 0003” TIR from rear mounting
register and working collet taper
• High speed up to 6000 rpm
• Body nickel plated for corrosion resistance
• Hardened and ground main body and cone
• Dead Length feature eliminates part pullback
• Straight recess or available with A type mountings.
Other mounting types available on request
• In second operations work, shoulder components can be
stopped against the face of the collet
• Both collet types are internally threaded in the rear
end to house either a backstop or ejector if required
• Drawback Spring Collets achieve the highest possible
concentric accuracy
• Chuck includes threaded connector to customers
specifications |
